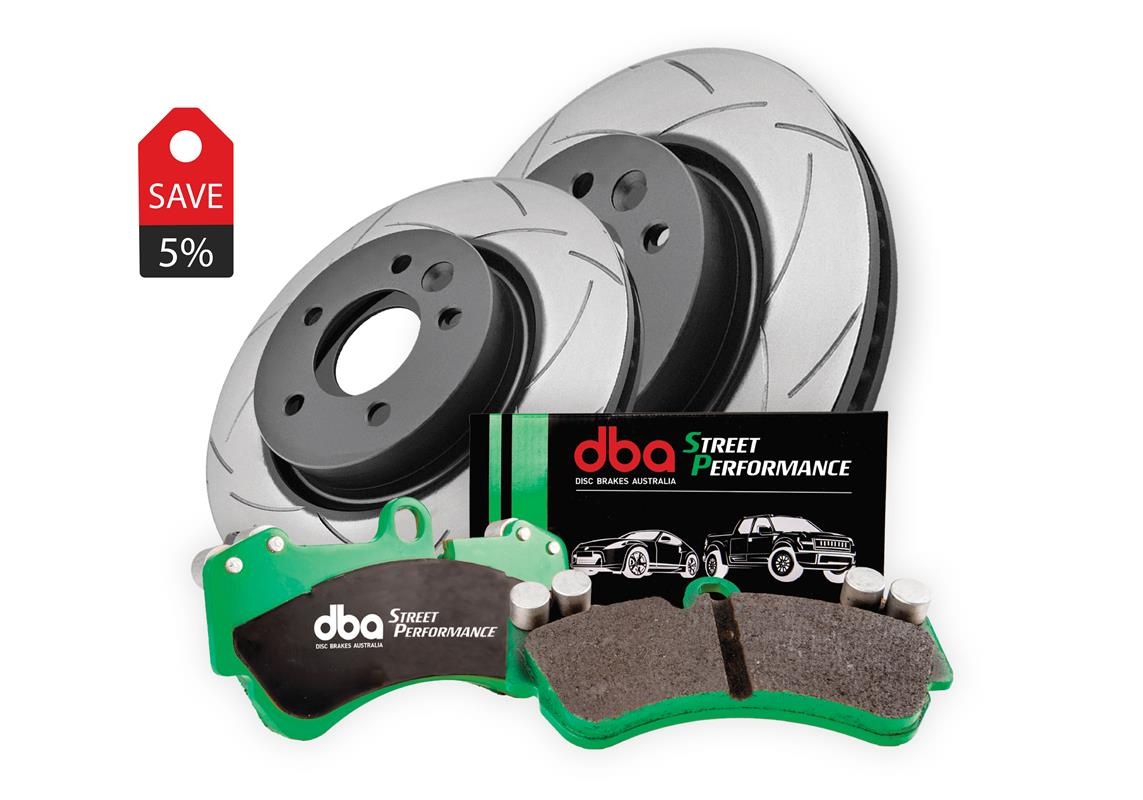

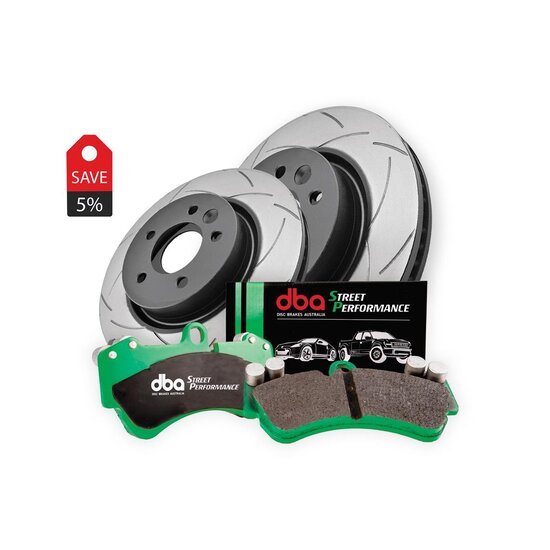

DBA622S-1148SP - Brake Kit (2x DBA 622S + DB1148SP)

• Ideal for spirited driving with a 12 month Manufacturers Warranty
• High quality, high performance to suit your requirements
• One box includes 1 set per axle

DBA’s New Brake kit of T2 Street series slotted rotors and Street Performance (SP) brake pads have been designed for drivers seeking improved braking performance over traditional O.E. brake discs and pads. DBA Street Performance brake pads are the next step up for all vehicles, developed to provide an effective friction response to pedal application and offer low wear and dust minimisation.

DBA recommend Street Performance brake pads and T2 discs for daily driver and performance vehicles, 4WD’s and SUV’s. They are also compatible with light commercial and trade vehicles.

Specifications:

• Daily Driver Premium Brake Kit
• Perfectly matching and extensively tested combination of disc and pad
• Save 5% of the price when purchasing Combo

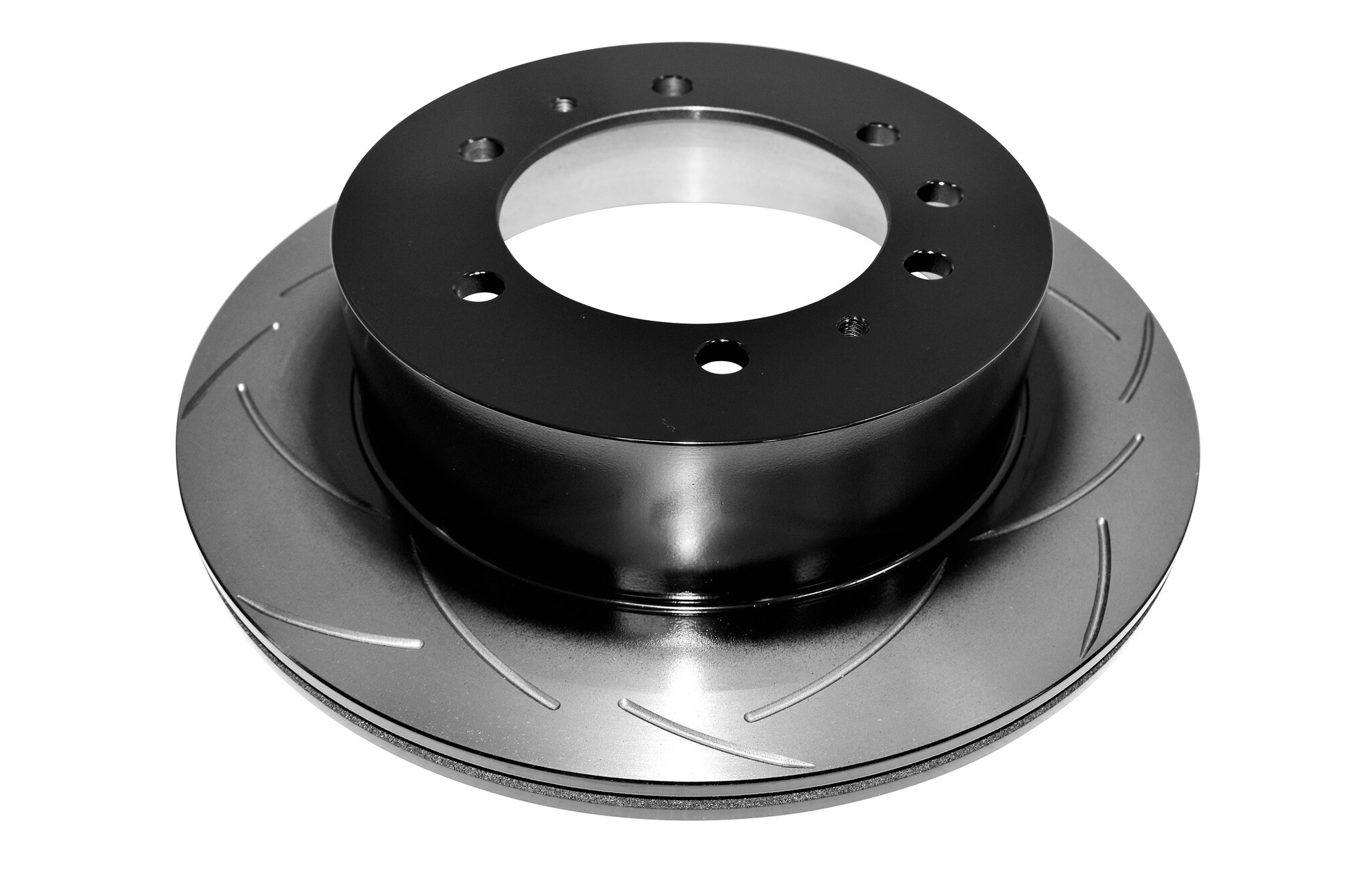

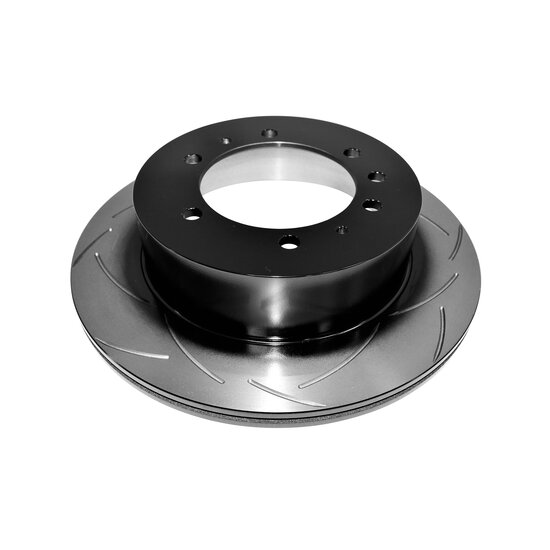

• DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system
• DBA discs: T2 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

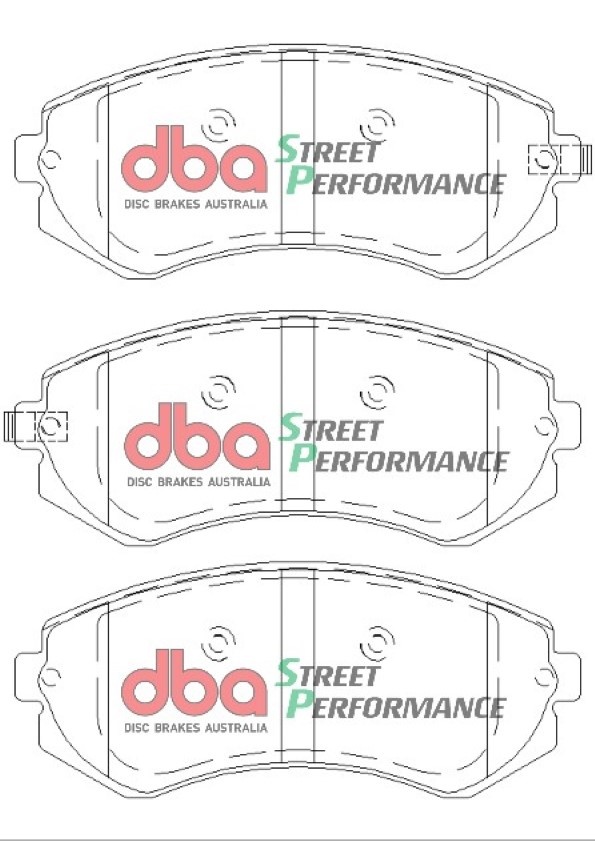

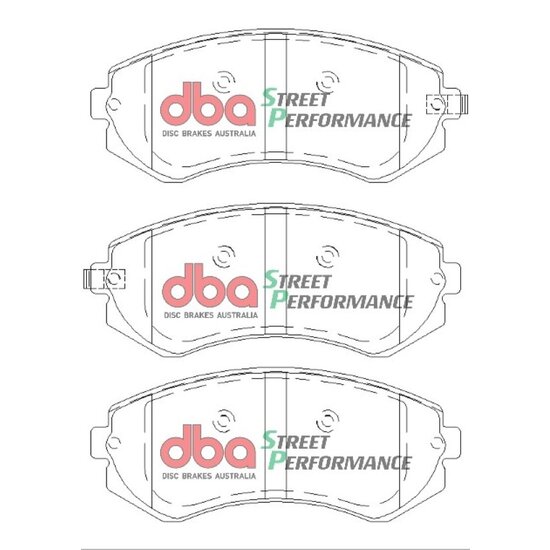

• DBA pads: Semi-metallic friction material
• DBA pads: F-F class friction (0.35 average mu from low to high temperatures)
• DBA pads: Optimal braking consistency up to 438℃ (820℉)
• Direct fit, no changes required over stock set up
• One combo - one manufacturer = no warranty issues

Diameter [mm]:315
Disc Vent:Kangaroo Paw
Number of Holes:6
Inner Diameter [mm]:111
Minimum Thickness [mm]:16
Thickness [mm]:18
Height [mm]:80
Pitch Circle [mm]:139.7
Stage:Stage 2
Tech Bulletins:Bedding in Brakes
Tech Bulletins:How to clean a Disc Rotor before fitting
Tech Bulletins:Motorsport - Important Info
ECE R90 number:E11*90R02/06*60525*00
Axle:Rear
Total Weight [kg]:16.68

Make Model Year Variant Category Note Details
SEE ALL PARTS NISSAN Patrol Y61 1997-2013 4.2 TD (1997-2013) Rear
SEE ALL PARTS NISSAN Patrol Y61 1998-2001 2.8 TD (1998-2001) Rear
SEE ALL PARTS NISSAN Patrol Y61 2000-2013 3.0 TD (2000-2013) Rear
