| Artikelnummer: |
NL-BMS-20001 |

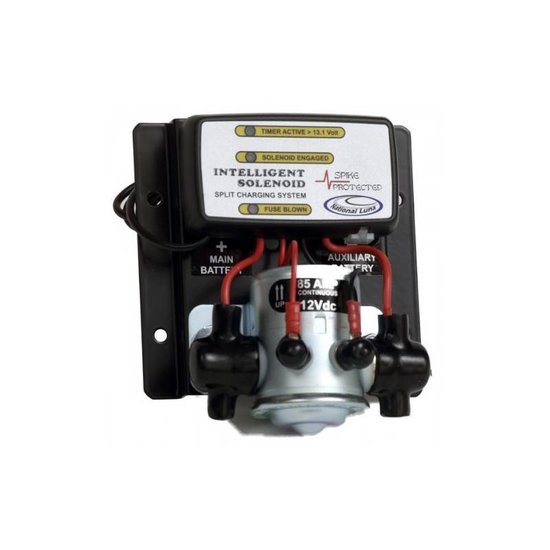

The National Luna Intelligent solenoid has been designed to be a compact, automatic, parallel split-charge isolator for motor vehicles. The product features intelligent control electronics and a low-loss, high-current solenoid rated for extreme environments.Installing the Intelligent solenoid is simple and can "piggy-back" off the vehicle's main battery without any ignition "tapping", ensuring that existing vehicle wiring is not tampered with.
The Intelligent Solenoid is supplied as a fully-functional split-charge isolator, no cables, batteries or other hardware is supplied. Battery monitor, lugs, cables and batteries are available separately .
- Simple installation
- Low-loss solenoid
- Automatic connection and isolation
- Plug-in port for remote monitor
- No ignition wiring necessary
- Alternator over-load protection
- Removed battery protection
- Damaged battery protection
- Short-circuit protection
- Can be installed in trailers or caravans
| Specifications |
|---|
| Physical size |
130mm (l) x 115mm (w) x 75mm (h) |
| Weight |
580g (Excluding connections) |
| Power supply |
8Vdc - 15Vdc (display range: 11.4V - 14.2V) |
| Switched current |
85 amp (continuous) , 400 amp (peak) |
| Power consumption |
40mA ave (standby) |
| 780mA max (solenoid engaged) |
|
|
