Pedders Extra Heavy Duty Load Carrying and Towing Suspension Kit for Toyota Hilux Engineered for a Constant 600 kg Rear Load

This suspension kit is designed for Toyota Hilux vehicles carrying a constant 600 kg load over the rear axle. It improves towing performance, load stability and increases ground clearance under consistent rear weight conditions.

Key Features

• 2" lift (+50mm) for added clearance
• Optimised for constant 600 kg rear load carrying and towing
• Heavy-duty TrakRyder Foam Cell shocks with 40 mm bore
• Front coil springs and rear leaf springs
• Fully assembled Ezifit struts for fast, compressor-free installation
• Includes fitting hardware: bushes and U-bolts
• 2-year / 25,000-mile warranty

Product Overview

This extra heavy-duty kit not only raises the vehicle but improves load-carrying and towing capacity for permanently mounted equipment such as service bodies, storage drawers, long-range fuel tanks or canopies. The lift sharpens vehicle stance and provides extra ground clearance suited to work environments.

A noticeably firmer ride may occur when driving unladen. For mostly unladen use, a comfort-focused alternative such as the Improved Ride Kit (803238) is recommended.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

Ezifit struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot, enabling straightforward bolt-in installation without a spring compressor or re-use of worn parts. All components are direct replacements for factory items. A professional wheel alignment is recommended after installation.

This kit is designed specifically for vehicles carrying a constant 600 kg load over the rear axle; using it without sufficient rear weight may result in a significantly firmer ride and incorrect ride height.

Technical Specification

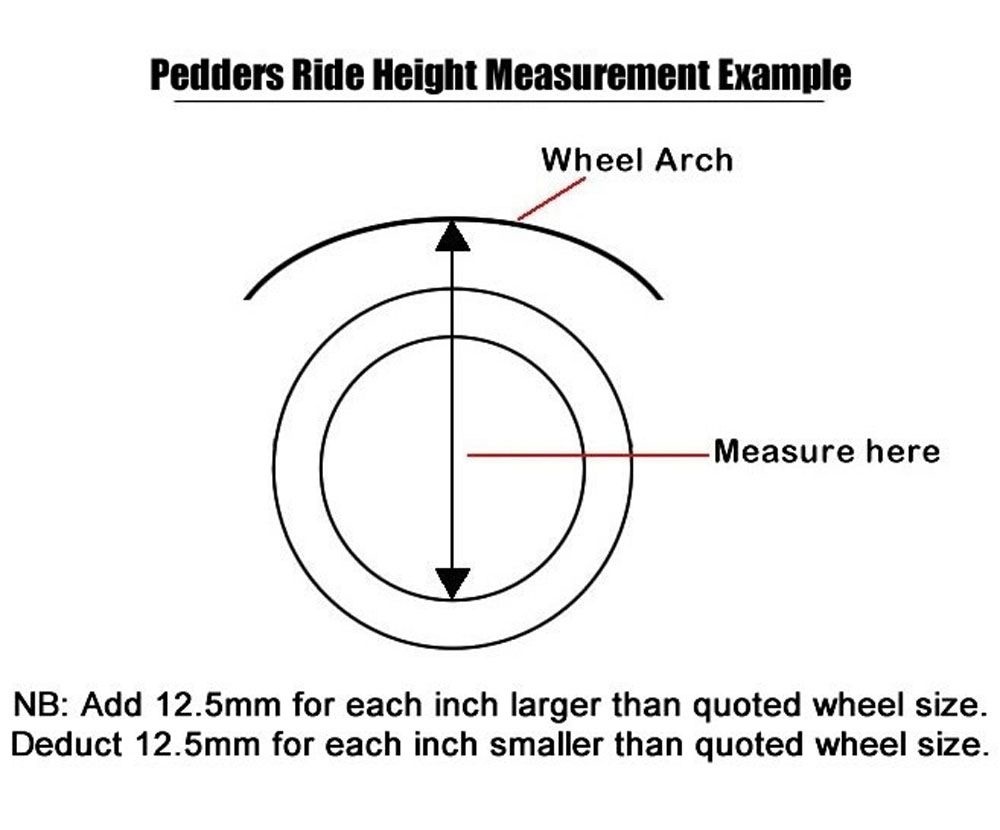

• Front ride height: ~805 mm with 18-inch wheels (reference method)
• Rear ride height: ~+50 mm compared to standard
• Included components: TrakRyder Foam Cell shocks, front coil springs, rear leaf springs, bushes, U-bolts, and complete Ezifit front struts (with top mount, bump stop and boot)
• Fitment: direct replacement; no vehicle modifications required
• Alignment: wheel alignment recommended after installation

Measurements are based on a standard vehicle. Front accessories such as winches or bull bars may alter final ride height. Alternative spring rates may be required for specific setups.

Why Choose Pedders

• Engineered for constant-load applications to maintain working ride height
• Matched components designed to work together as a system
• Pre-assembled Ezifit struts reduce installation time and complexity
• Backed by a 2-year / 25,000-mile warranty

Contents of Kit 803241

•
  807205 - Pedders EziFit Foam Strut (280071)
  151241 - Pedders Trakryder Foam Cell Shock
  265012 - Pedders Trakryder Leaf Spring
  EP8338 - Urethane Leaf Spring Eye Bush (2PKT)
  EP8339 - Urethane Leaf Spring Eye/ Shackle Bush (8PKT)
  434005 - SQ U Bolt 62 x14 x 225
  5056 - 2016 Hilux HID headlight sensor bracket
