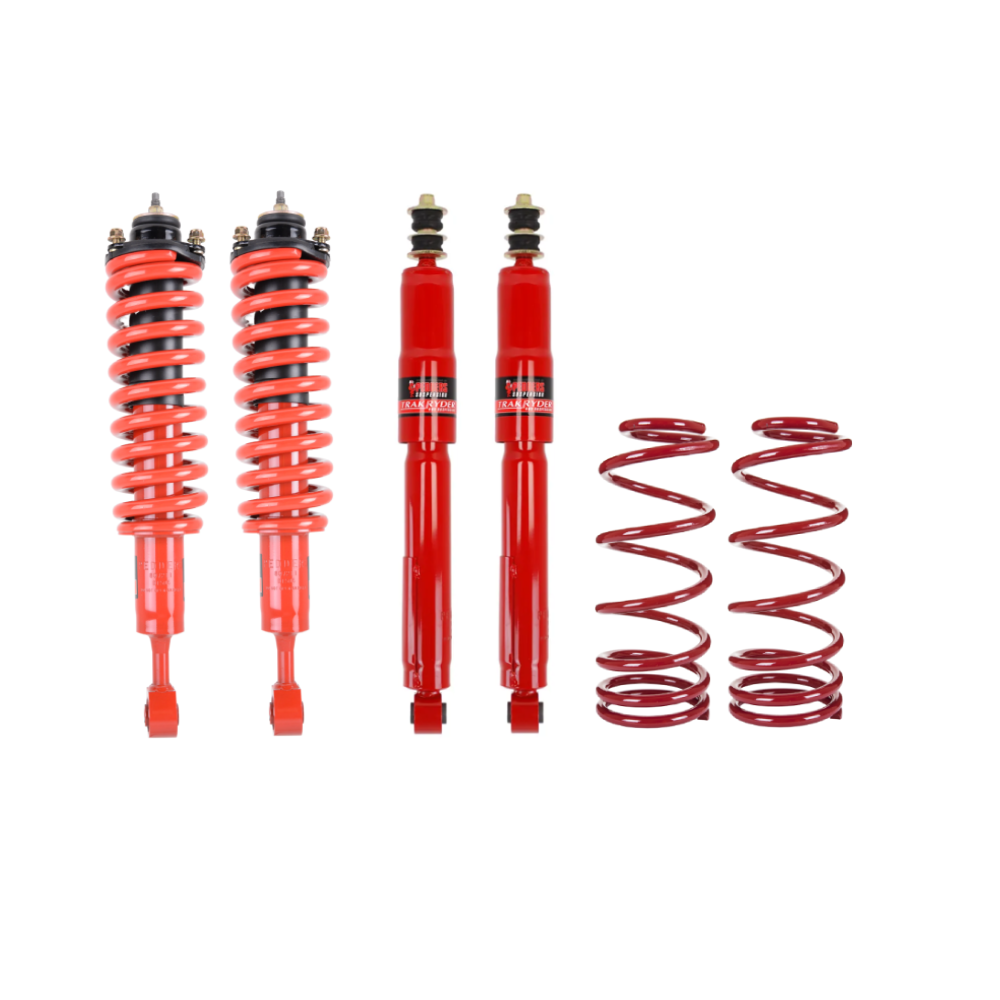

Pedders Suspension Lift Kit with Foam Cell Struts for Toyota LC150

This lift kit is designed to raise the Toyota LC150 by approximately 40mm, improving ground clearance and vehicle stance. It features pre-assembled Pedders Ezi Fit Foam Cell Struts up front and TrakRyder coil springs with Foam Cell shocks at the rear, providing a balance of comfort and off-road capability.

Key Features

• 1.75 inch lift kit to raise vehicle stance

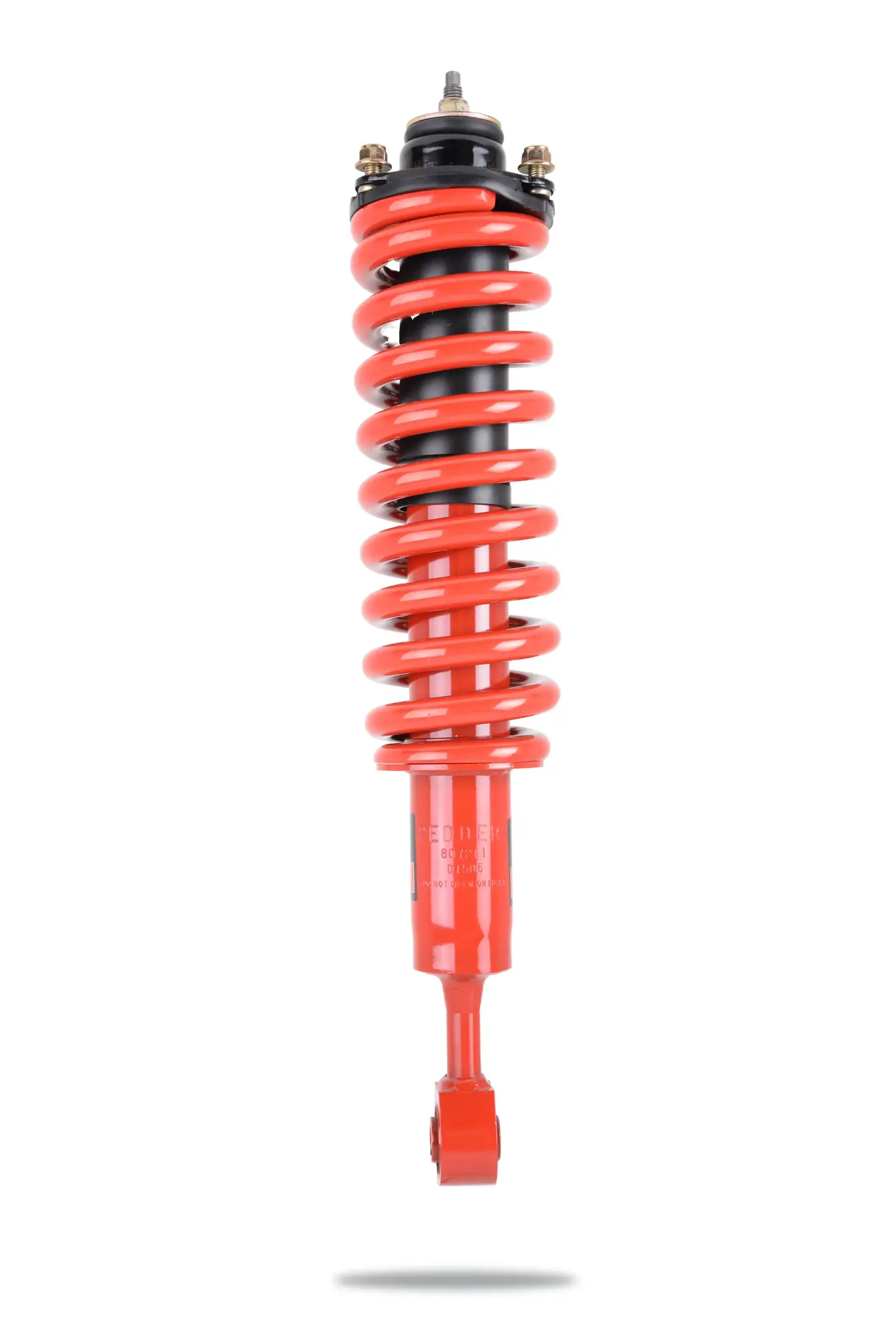

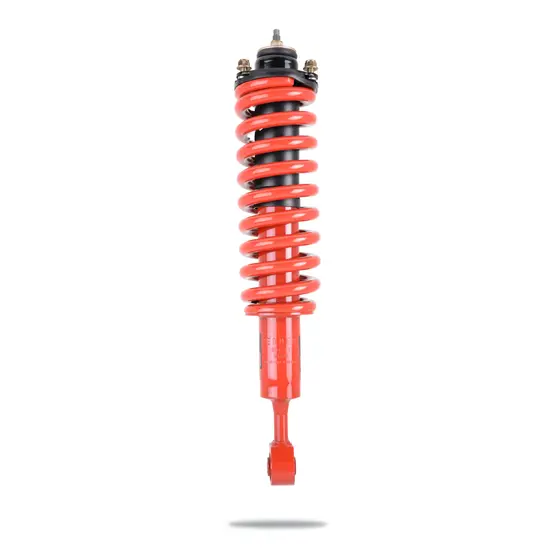

• Pre-assembled front Ezi Fit strut assemblies with Foam Cell shocks
• Increased off-road ground clearance
• Premium grade steel coil springs
• Includes new top mount, bump stop, and boot on front struts
• Backed by a 2 year / 40,000km warranty

Product Overview

This entry-level lift kit improves the ground clearance of the Toyota LC150 by approximately 30mm, optimising it for light off-road use and enhanced vehicle appearance. The pre-assembled front struts eliminate the need for spring compressors or reusing older parts, allowing straightforward installation.

The kit suits standard vehicles and can help accommodate larger tyres. For those regularly towing or carrying heavy loads, a heavier duty option is recommended to maintain performance and durability. After installation, a professional wheel alignment is advised to optimise handling.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

The kit's front struts come fully assembled with Pedders Foam Cell shocks, springs, and all necessary mounting hardware, allowing a direct bolt-on installation without the need for spring compressors or reuse of original parts. The components replace the vehicle's original suspension parts with no other modifications required. A wheel alignment is strongly recommended after fitting.

This kit is primarily comfort-focused but improves off-road clearance. For constant heavy load or towing use, consider Pedders' heavy-duty lift kits.

Technical Specification

• Lift height: approximately 30mm
• Front vehicle height: 795mm with 18 inch wheels
• Rear height: approx. 30mm higher than standard
• Includes pre-assembled front Ezi Fit Foam Cell struts with new top mount, bump stop, and boot
• Premium grade steel coil springs (TrakRyder rear)

Note: Heights may vary if additional equipment such as winches or bull bars are fitted to the vehicle. Different springs may be required for these applications.

Why Choose Pedders

• Matched components designed as a system for balanced ride and handling
• Proven Foam Cell shock technology for consistent damping and durability
• Easy installation with fully assembled struts, no spring compressors required
• Backed by a 2 year / 40,000km warranty for confidence and support
