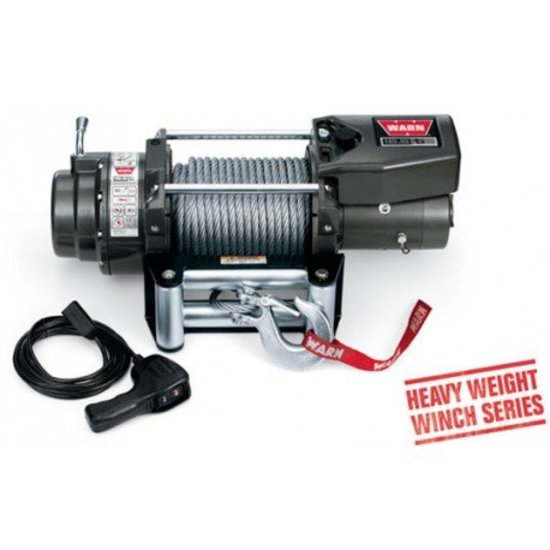

Warn 16,5 TI (7484 kg)

€3.055,00 Incl. btw
Artikelnummer: WA-068801
WARN 16.5ti

Highest capacity, most technologically advanced winch for big trucks

The 16.5ti features the full diagnostic ability of WARN thermometric technology, plus the extreme sealing, durability, and reliability that the WARN ti-series of winches are known for. Series-wound motor combined with a 3-stage planetary geartrain delivers 16,500 lbs. of pulling power. Thermometric indicator LED provides operator feedback on motor temperature.
  • Extreme-duty sealing helps protect the winch from the outside elements
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Exclusive brake design provides superior control while winching
  • Aluminum control box cover for added protection of the electronics
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12' (3.7m) lead and thermometric LED indicator for operator feedback
  • Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
  • 90' of 7/16" (27m of 11mm) diameter wire rope
  • Backed by the WARN Limited Lifetime Warranty
16.5ti SPECS
Part Number: 68801
Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
Motor: 12V 4.6 hp, Gen II, Series Wound
Electrical Control: Solenoid Control Pack
Remote control: Remote switch, with LED indicator 12 ft (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic direct drive cone
Wire rope: 90 ft, 7/16 in diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 ft (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)
Weight: 138 lbs. (63 kgs.)
