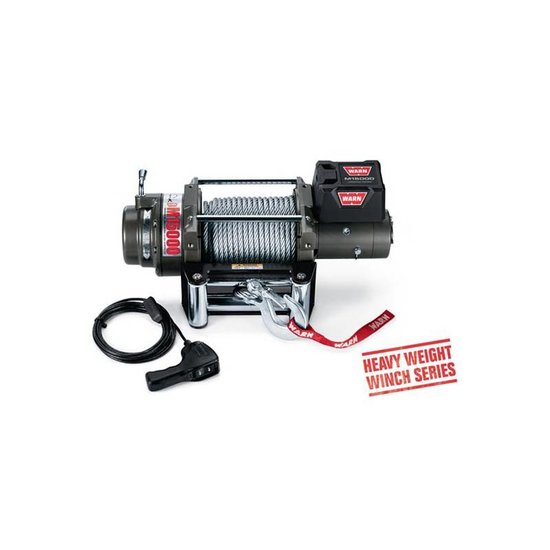

Warn M15000 12V (6804kg)
€3.171,07
Excl. btw
€3.837,00
Incl. btw
Informatie
WARN M15000Enough capacity for the heaviest loads |
A heavy-duty 15,000 lb. capacity winch with a 4.6hp series wound motor. Direct drive cone braking system. Control pack is designed for clearance and ease of access. Comes with 90' of 7/16" wire rope.
|
| M15000 SPECS/PART NUMBERS |
| Part number: 47801 (12V) |
| Part number: 478022 (24V) Contact WARN Customer Service for Availability |
| Rated Line Pull: 15,000 lbs. (6804 kgs) single-line |
| Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 12 ft (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear ratio: 315:1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic mechanical cone |
| Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm) |
| Weight: 136 lbs. (62kgs.) |
| Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72 in (1.83m) |
| Finish: Argent Gray Powder Coat |
Niet gevonden wat je zocht?
Laat ons helpen!
Laat ons helpen!
Specificaties
Product
| Artikelnummer: | WA-047801 |
| Colli: | 1 |
