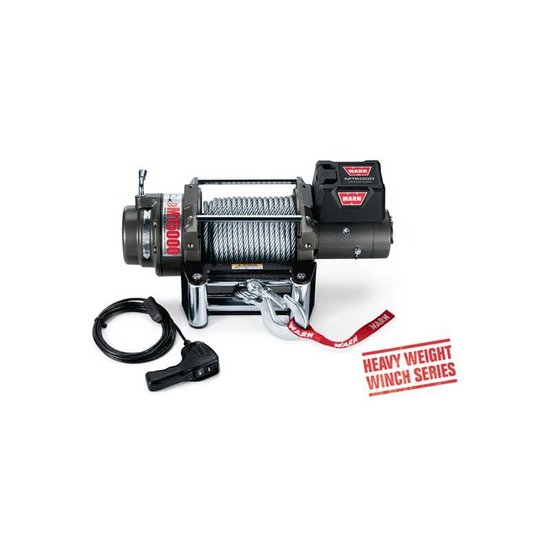

Warn M15000 24V (6804kg) 24V

€3.275,00 Incl. btw
Artikelnummer: WA-478022
WARN M15000
Enough capacity for the heaviest loads
A heavy-duty 15,000 lb. capacity winch with a 4.6hp series wound motor. Direct drive cone braking system. Control pack is designed for clearance and ease of access. Comes with 90' of 7/16" wire rope.
  • High strength carrier plates are designed to handle heavy gear train stresses
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Brake provides superior control while winching
  • Remote-mount control box allows for various mounting options
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12' (3.7m) lead
  • Chip-resistant powder-coated finish
  • 90' of 7/16" (27m of 11mm) diameter wire rope
M15000 SPECS/PART NUMBERS
Part number: 47801 (12V)
Part number: 478022 (24V) Contact WARN Customer Service for Availability
Rated Line Pull: 15,000 lbs. (6804 kgs) single-line
Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)
Weight: 136 lbs. (62kgs.)
Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Argent Gray Powder Coat
