Pedders Extra Heavy Duty Load Carrying and Towing Suspension Kit. With Assembled Struts. For Ford Ranger 2023+, PX MkIII

Pedders Extra Heavy Duty Load Carrying and Towing Suspension Kit. With Assembled struts. For Ford Ranger

Improved load carrying, towing ability and ground clearance

Do you use your Ranger for load carrying and/or towing?

Then Pedders Suspension have the solution for you.

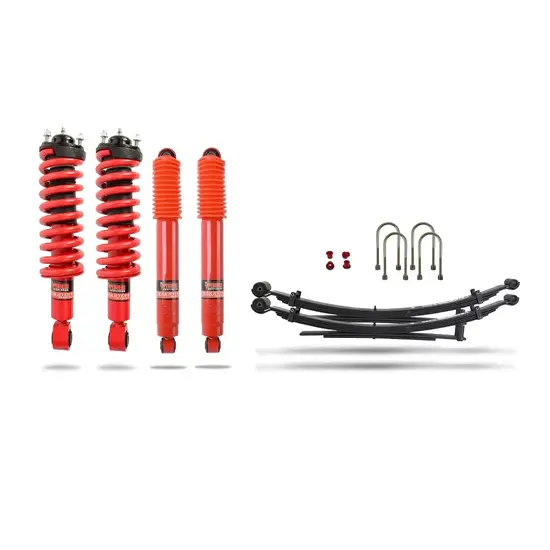

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our third level heavy duty kit and is designed primarily to raise the vehicle and improve its load carrying and towing ability. If your Ranger currently'sits low at the rear when towing or load carrying, and you operate in this condition all the time, then this kit offers a significant improvement compared to the standard vehicle.

This kit is for those who run their vehicle heavily laden all the time. Operation of the vehicle unladen with this kit is not recommended and will result in an unacceptably harsh ride. Pedders recommend a MINIMUM of 350kg load in the rear at all times. Bear in mind however that an average canopy and tow bar will be 130-150Kgs.

This kit will raise the vehicle by approx.40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

For those using the vehicle in a variably laden state, consider one of our other heavy duty kits, either 803118or 803120.

The fully assembled Ezifit struts in this kit allow quick and easy fitment to your vehicle. These feature a Pedders Foam cell shock, Pedders spring as well as new top mount bump stop and boot. No need to use spring compressors or re-use any old parts. Simply bolt straight on.

After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key Features

• Extra Heavy Duty Kit
• Improved load carrying and towing
• IncreasedOff-Road Ground Clearance
• Sintered Iron Piston Shockswith Large 40mm Bore
• Premium Grade Steel Coils
• Air Assist air bag system
• All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Front: 840mm with 17inch wheels

Rear: Approx.50mm higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

Contents of Kit 803369
